Dixie Narco Compressor Decks
Complete sealed refrigeration decks for Dixie Narco soda vending machines. These slide-in cooling assemblies include the compressor, condenser, evaporator, fans, and related components—charged with refrigerant and ready to install with basic hand tools.
Our collection covers popular Dixie Narco models, including:

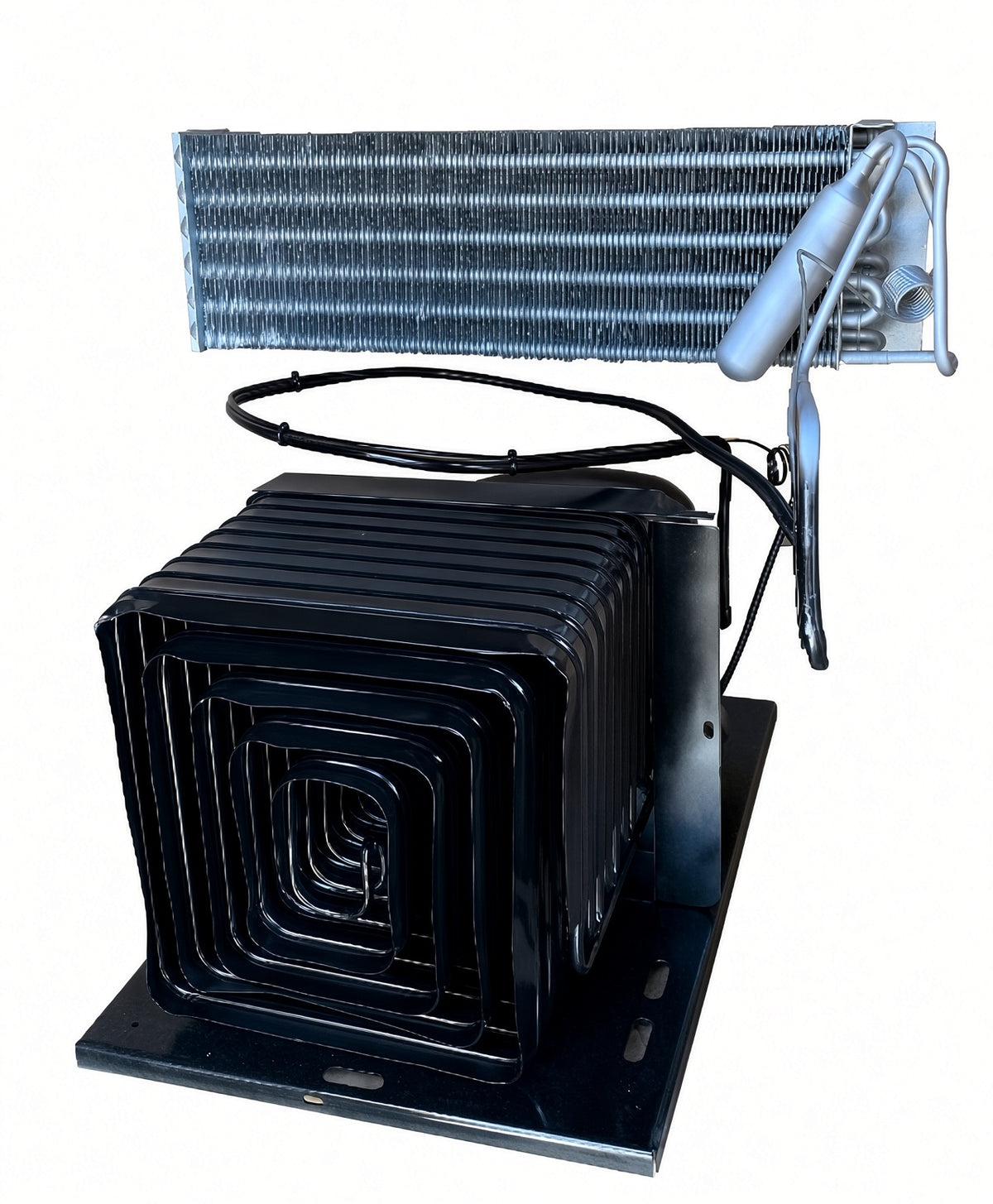

- Two-deep stack machines (Model 300, 400, and 1200 decks): Fits models such as 168, 180, 240, 276 (non-E), 300, 348, 360, 368, 414, 432, 440, and similar cabinets that load 12 oz cans two deep end-to-end.
- Three-deep stack machines (Model 800 and 1203 decks): Fits models such as 276E, 501, 501E, 501T, 522, 600, and similar E / T / flex-pak cabinets that load 12 oz cans three deep. Later 1203 decks often replace earlier 800-T units on the same machines.

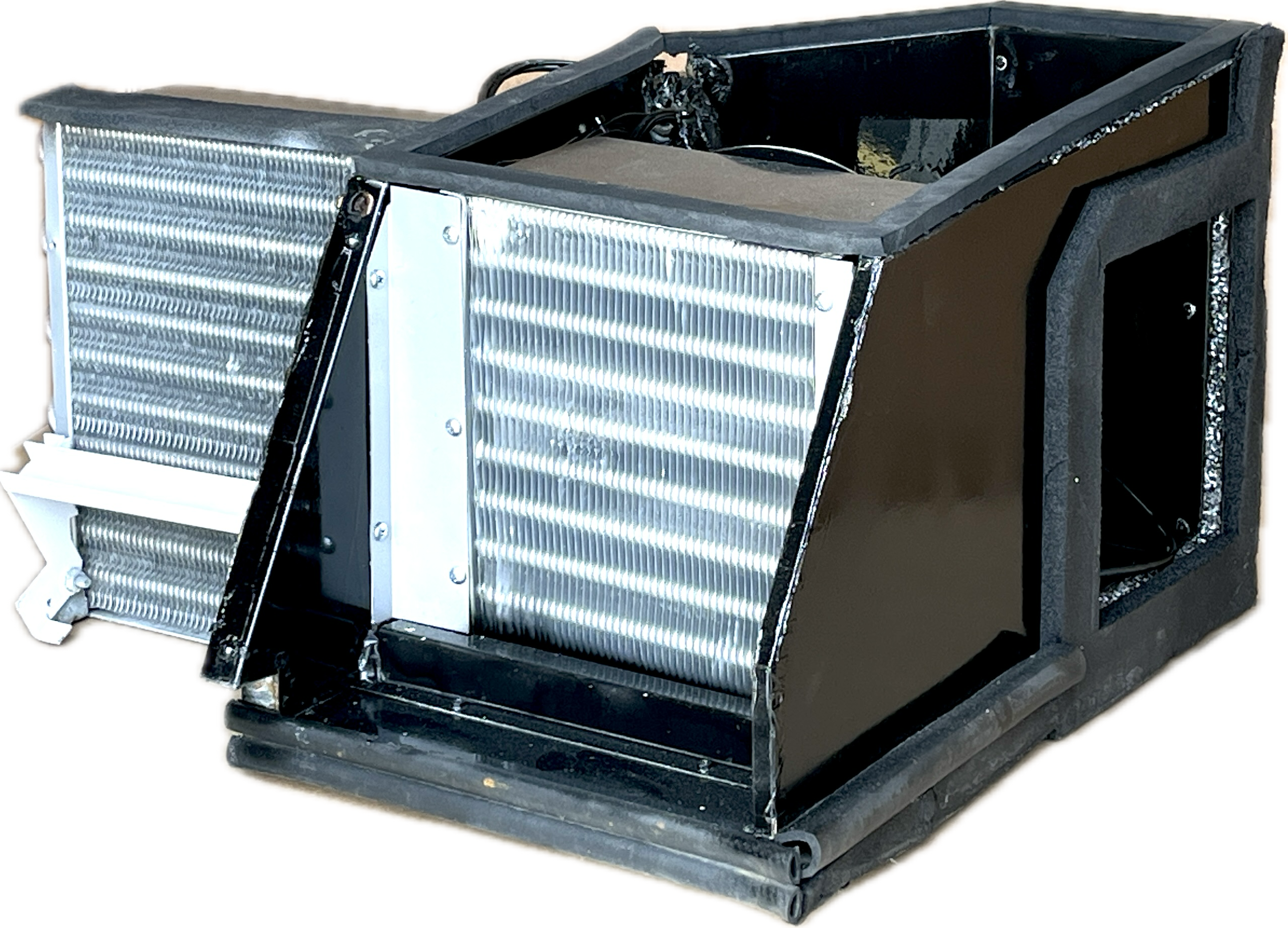

- Glass-front BevMax machines: Dual-condenser decks for 2145 and 5591 bottle-drop models, plus other BevMax cooling units (including some 5800-4 applications).
Most domestic decks are 115V / 60 Hz and use R-134a. Units are rebuilt in-house by certified refrigeration technicians, cleaned, tested, and sealed. Many listings include a core-return option and warranty.
Always match the deck model and evaporator length on the unit you are removing. If your specific Dixie Narco model isn’t listed or you need help confirming fit (two-deep vs. three-deep, single vs. dual condenser), contact us—we can often rebuild your existing deck or help identify the correct replacement.
