Crane 472 Combo Machine Compressor Cooling Unit


Core return required: $200 core charge will be added at checkout and will be refunded when the core is returned (within 30 days) with the pre-paid return shipping label that is provided
Price:
Sale price$925.00

Description

Crane 472 Combo Machine Refrigeration Unit — Complete Cooling Deck

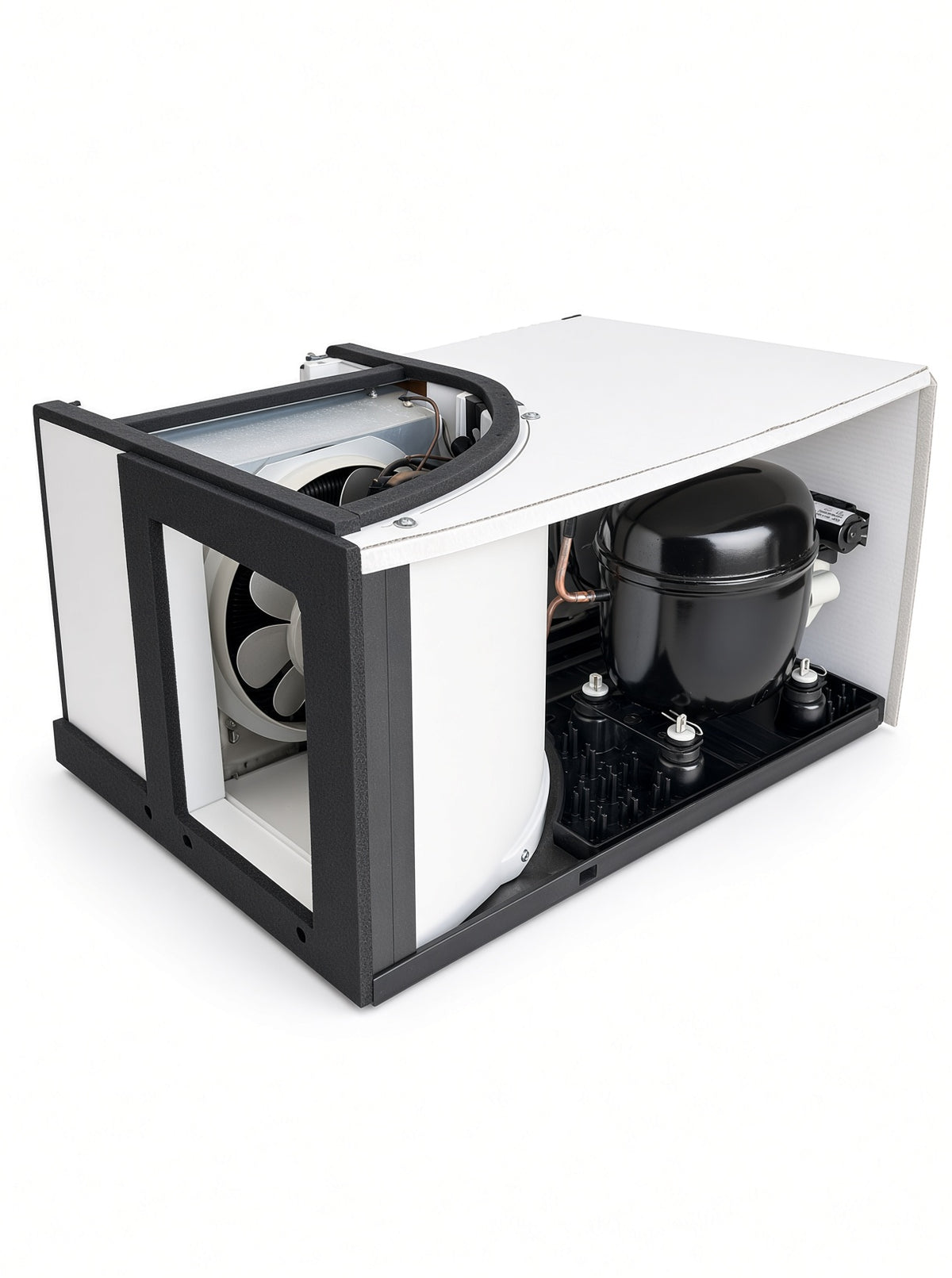

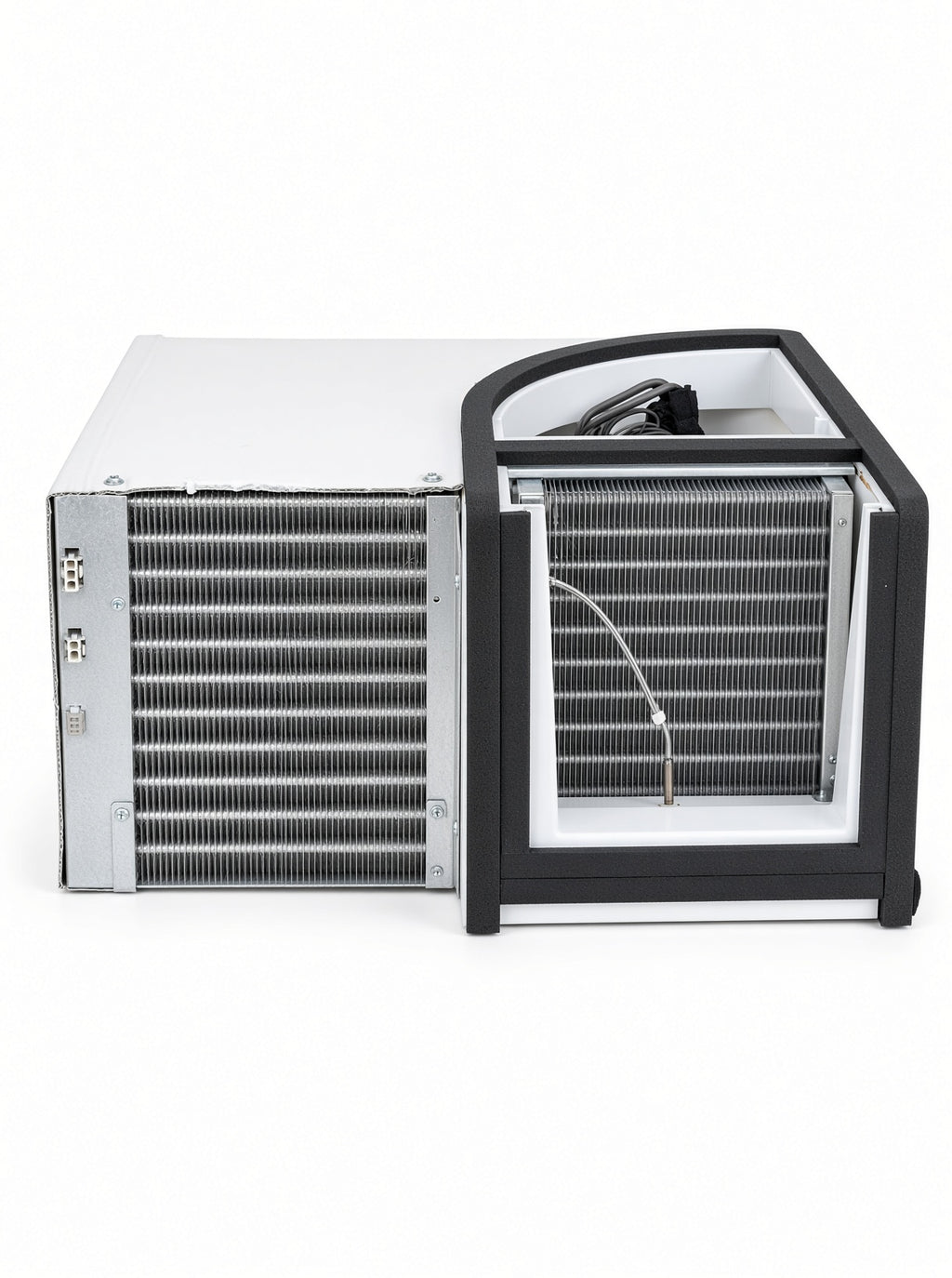

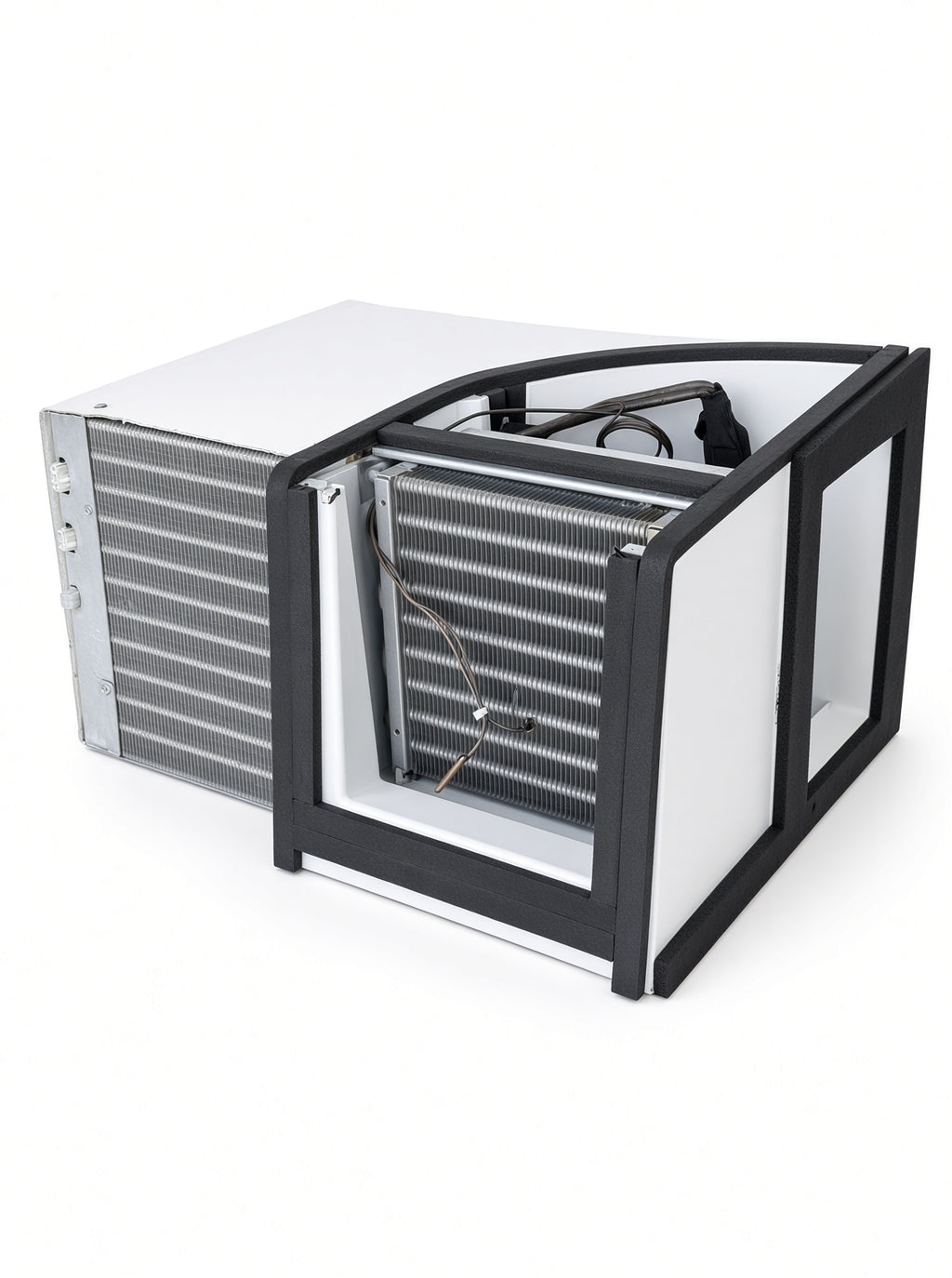

Certified Rebuilt Crane National Merchant Media combo refrigeration compressor deck for the model 472 (6-wide). Complete slide-out cooling assembly: hermetic compressor, condenser, condenser fan, molded evaporator box with coil and evaporator fan, condensate pan, and black foam gasket.

Domestic deck is 115V / 60 Hz and charged with R-134a. Factory assembly for the 472 is CR0008293 (A, REFR DECK, 115V 60Hz R134, RMM). The 472 uses an Embraco FFU130HAX compressor, part 80250289, listed as Super 1/3 hp. Service data for the domestic 472 combo lists about a 9.8 oz R-134a charge, 8 A running, and 250 psi high-side / 105 psi low-side test pressures. Related parts include evaporator box CR0005267, evaporator coil and fan assembly CR0010935, and condenser assembly CR0005719.

Fits Crane Merchant Media combo cabinets that use this R-134a deck, primarily the 472 6-wide. The 4-wide 471 uses a similar deck (CR0004431) with an FFU100HAK compressor and a smaller charge, so confirm width before swapping. Do not install in a later R-290 Merchant combo. Export 230V decks (CR0006230) are a different assembly.

This item only available In USA to the 48 contiguous states
