Vendo V-21 Soda Vending Machine Refrigeration Compressor Cooling Deck Unit

Vendo V-21 Soda Vending Machine Refrigeration Compressor Cooling Deck Unit

Vendo
Option: Refurbished — 90-day warranty - Original good compressor. Tested - repaired - cleaned - painted- charged with refrigerant and sealed - $399
Core return required: $50 core charge will be added at checkout and will be refunded when the core is returned (within 30 days) with the pre-paid return shipping label that is provided
Price:
$399.00

Description

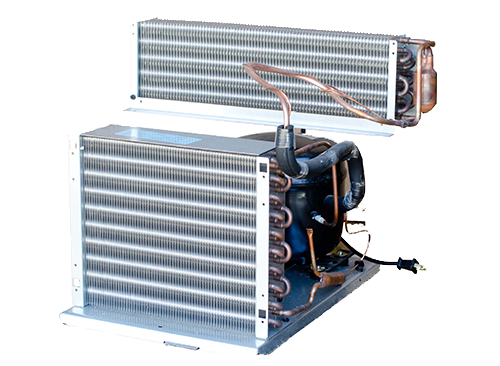

Vendo V-21 Compressor Cooling Deck

Complete slide-in refrigeration deck for Vendo V-21 stack soda machines, such as V521, V621, V721, and V821. The sealed system includes compressor, condenser, condenser fan assembly, evaporator (approx. 20" long), drier, capillary tube, charged with refrigerant and is sealed. Ready to install with basic hand tools. Confirm the existing deck style before ordering. Similar to item pictured

Compatibility
Fits Vendo V-21 series machines, commonly listed as V521, V621, V721, and V821 (and similar V-21 identified cabinets). Evaporator is approximately 20" long. Confirm the existing deck style and refrigerant before ordering.

Specs

  • Sealed refrigeration system on a slide-out base
  • Refrigerant: commonly R-134a (some later V21 machines use R-290 or CO2 — match the original)
  • Evaporator: approximately 20" long
  • Voltage: typically 115V / 60 Hz
  • Weight: approximately 60–62 lb

The deck mounts in the base of the cabinet outside the product compartment. Disconnect power, remove the old unit, and slide the replacement in, checking airflow, drain routing, and electrical connections. Always verify model, evaporator size, and refrigerant type before installation.



Choosing USPS for delivery will add 1-2 days

Alaska and Hawaii - Certified rebuilt option only
