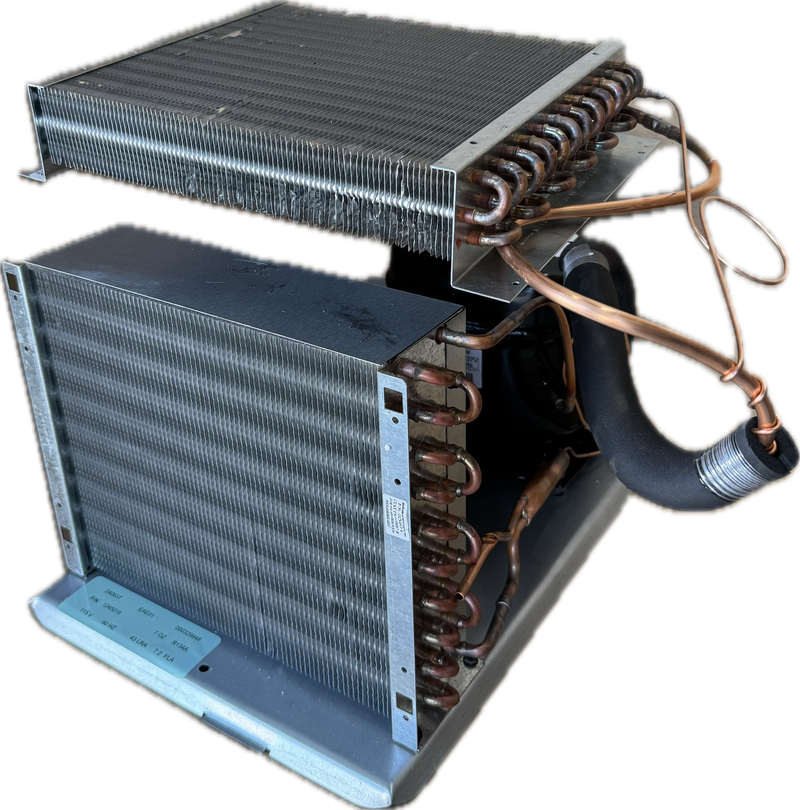

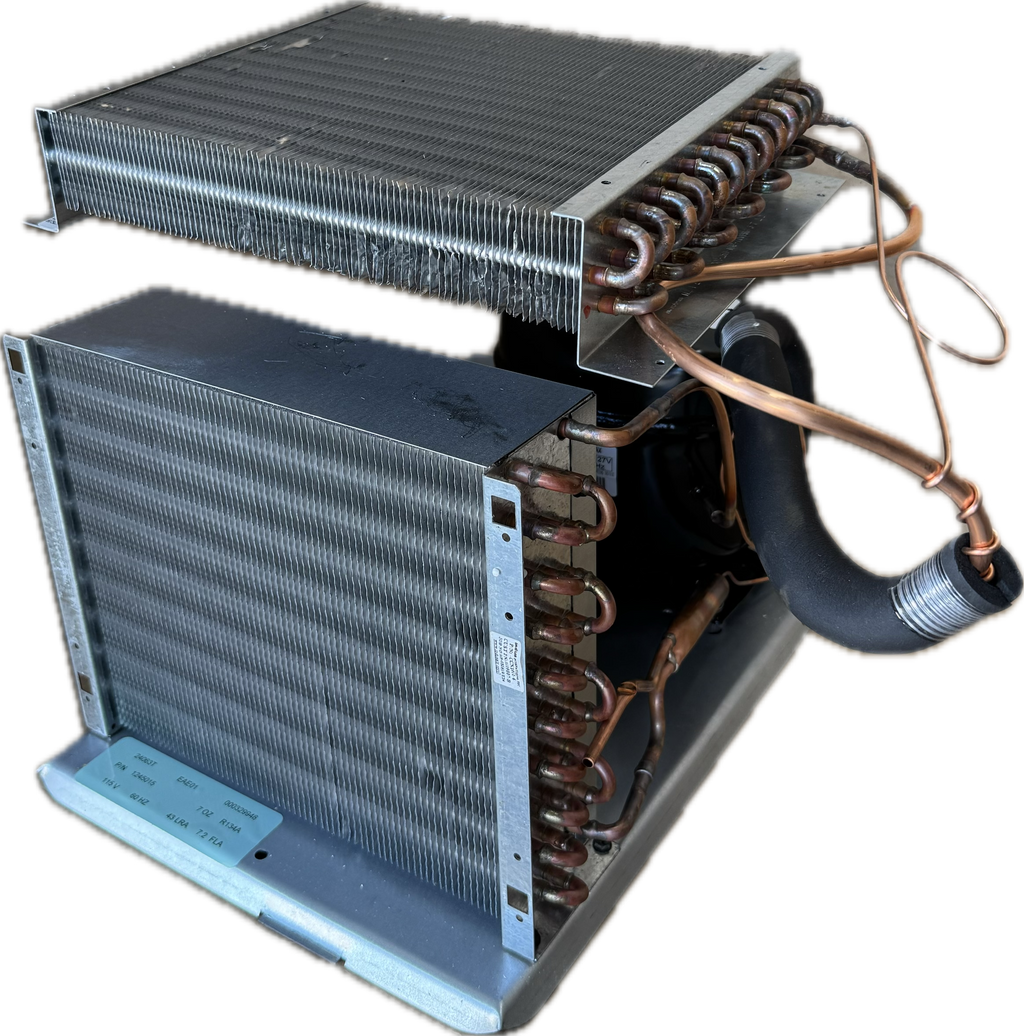

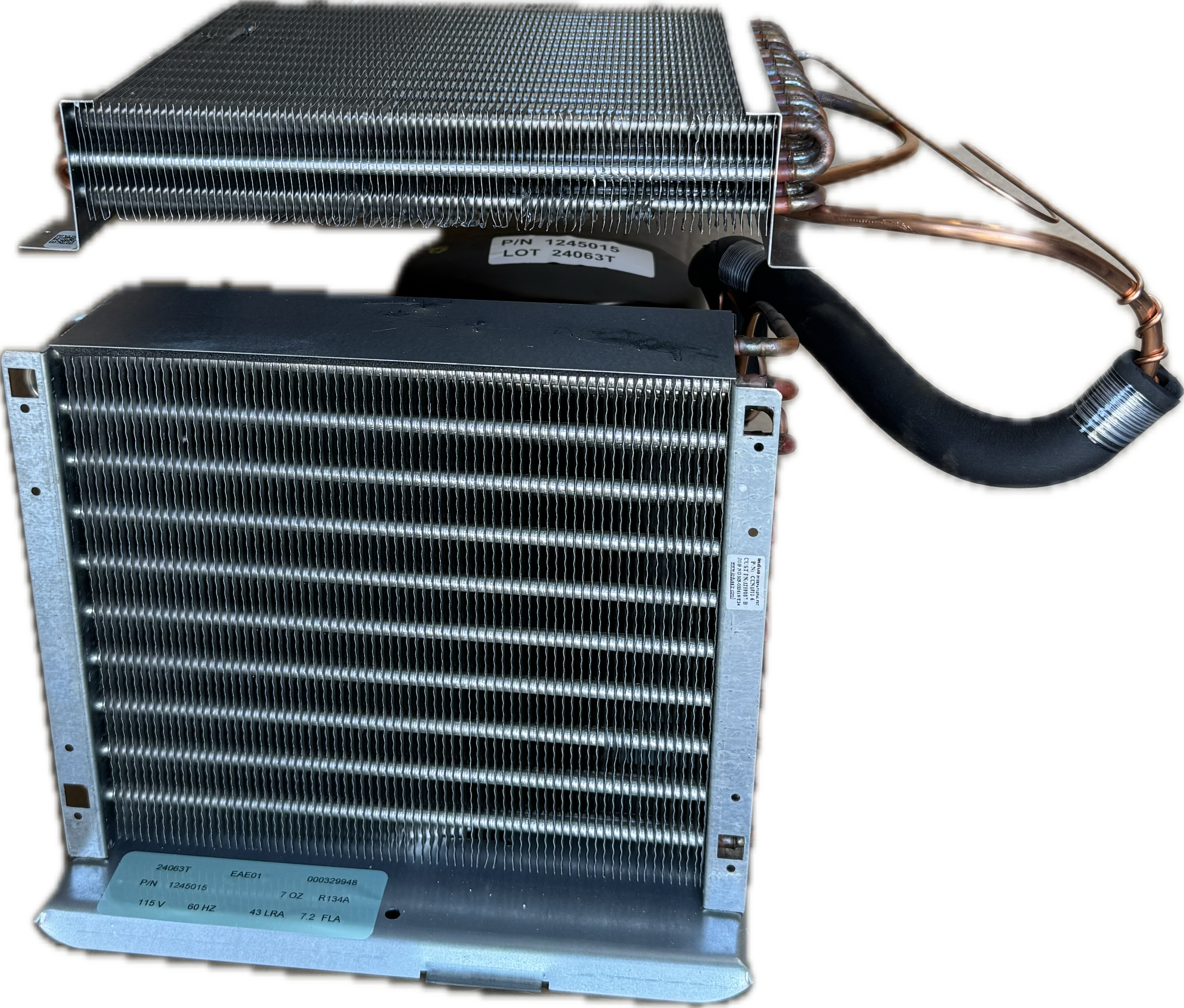

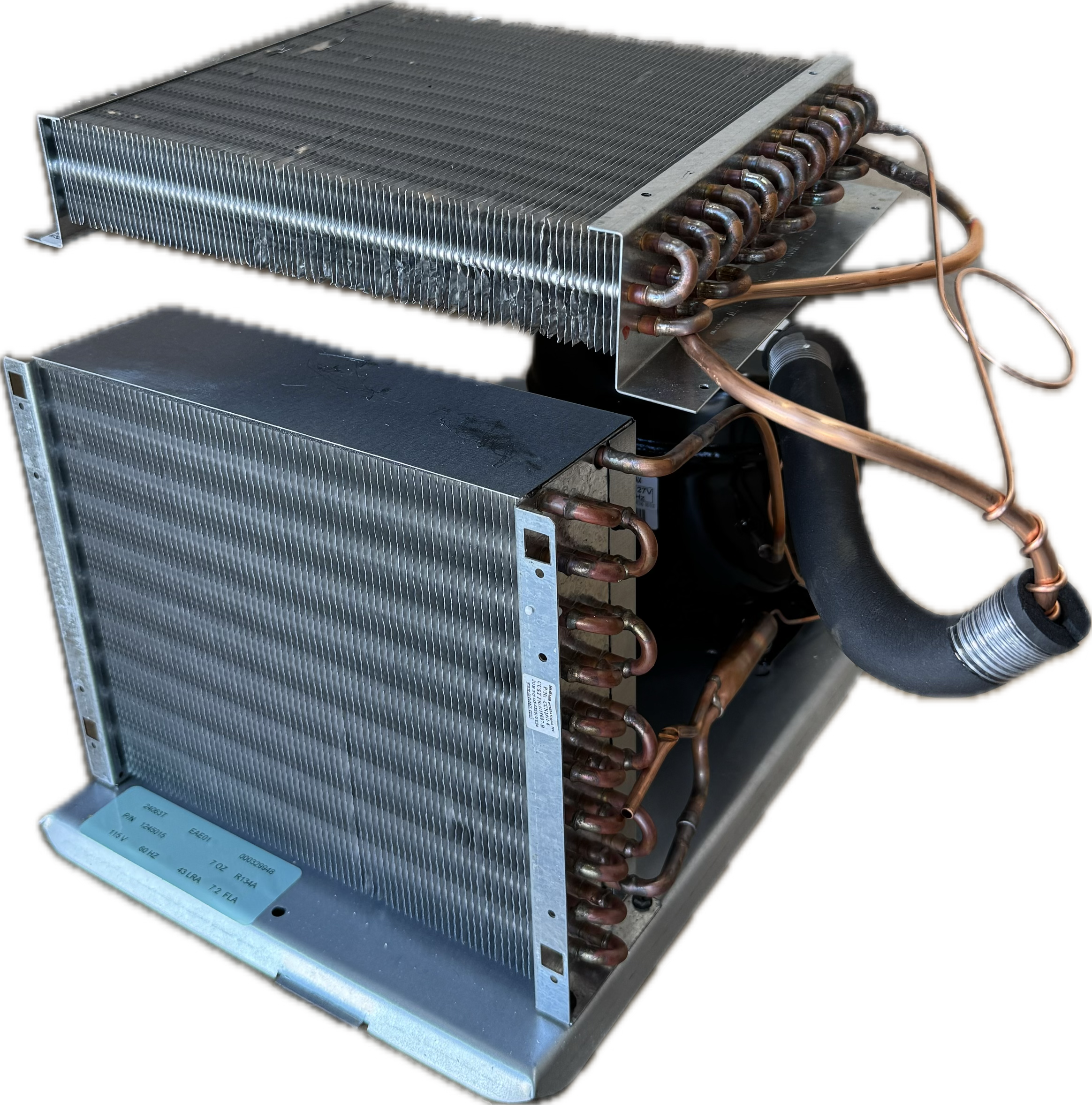

Vendo GF9 Compressor Cooling Unit — Complete Refrigeration Deck
Complete compressor cooling deck for the Vendo / SandenVendo GF9 (GGFV) glass-front drink vender. Sealed slide-in refrigeration assembly with compressor, condenser, condenser fan, evaporator, and related components. Mounts in the base of the cabinet.
Fits / used on:
- Vendo GF9 glass-front beverage machine
- Current Vendo part #1245015
- Replaces older part #1227583
- Typical cabinet: about 72" H × 47" W × 34" D, 45-select glass front
- Domestic units are usually 115V / 60 Hz
- Common refrigerant on these decks is R-134a
What it is: A complete cooling unit, not a loose compressor. Designed to pull and replace as one module with basic hand tools. Cools the merchandiser so cans and bottles stay cold behind the glass.
Common reason to replace: Warm product; compressor clicks or will not stay running; iced evaporator after airflow and sensor checks; leak / low charge; failed compressor or condenser fan.
Install notes:
- Disconnect power first.
- Remove lower covers and unplug compressor, fans, and any temp/defrost leads.
- Slide the old deck out and set the new unit on the same mounts.
- Confirm condenser airflow and a clear rear screen.
- After install, verify both fans and the compressor run, then allow pull-down with the door closed.
- Match voltage and refrigerant to the original deck tag.
Condition: Certified rebuilt with brand new compressor. Sold as a complete GF9 refrigeration deck. Compare photos and part number to the unit you are removing.
Direct replacement for operators repairing a Vendo GF9 instead of buying another machine. Verify 1245015 / 1227583 and refrigerant before ordering.
