Description

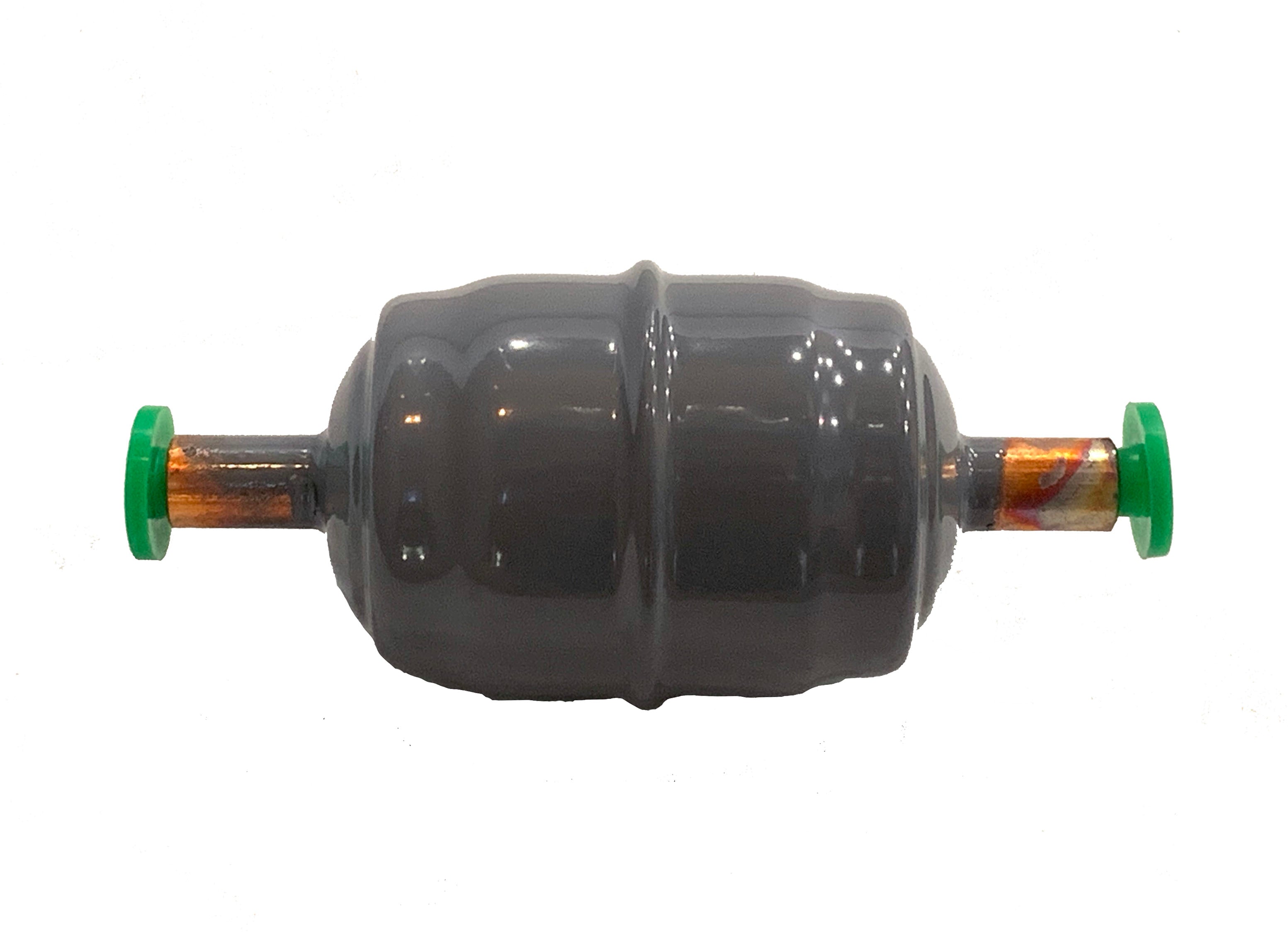

Sporlan C-032-S Catch-All Liquid Line Filter Drier (Directional / Uni-Flow)
Brand-new Sporlan (Parker Sporlan) C-032-S sealed liquid line filter drier designed for vending machine refrigeration systems. This is the standard size used across most beverage and snack vending machines.
Key Specifications
- Connections: 1/4" ODF solder (sweat) inlet and outlet
- Desiccant Volume: 3 cubic inches
- Capacity: 0–1/2 ton
- Dimensions: 3.81" overall length × 1.75" body diameter
- Max Working Pressure: 650 PSIG
- Construction: Sealed steel shell with solid copper ODF fittings and molded porous Catch-All core
Compatible Refrigerants
Works with most common refrigerants used in vending equipment, including but not limited to:
R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-507, R-417C, R-409, Hot Shot, and Hot Shot 2 (and other HCFC, HFC, HFO, and HC refrigerants).
What It Does
The filter drier is a critical component that removes moisture, acids, and solid contaminants (scale, solder particles, dirt, sludge) from the refrigerant circuit. The molded porous core provides excellent filtration and protects the compressor, capillary tube, and expansion devices. Installing a fresh drier helps maintain system efficiency, prevents freeze-ups, and extends the life of the refrigeration unit.
Application Notes
- Directional (single-flow) design — install with the flow arrow in the correct direction.
- Ideal size for virtually all standard vending machine refrigeration systems.
- Commonly used as a direct replacement during system repairs or after compressor replacement.
Condition: Brand new.
