Description

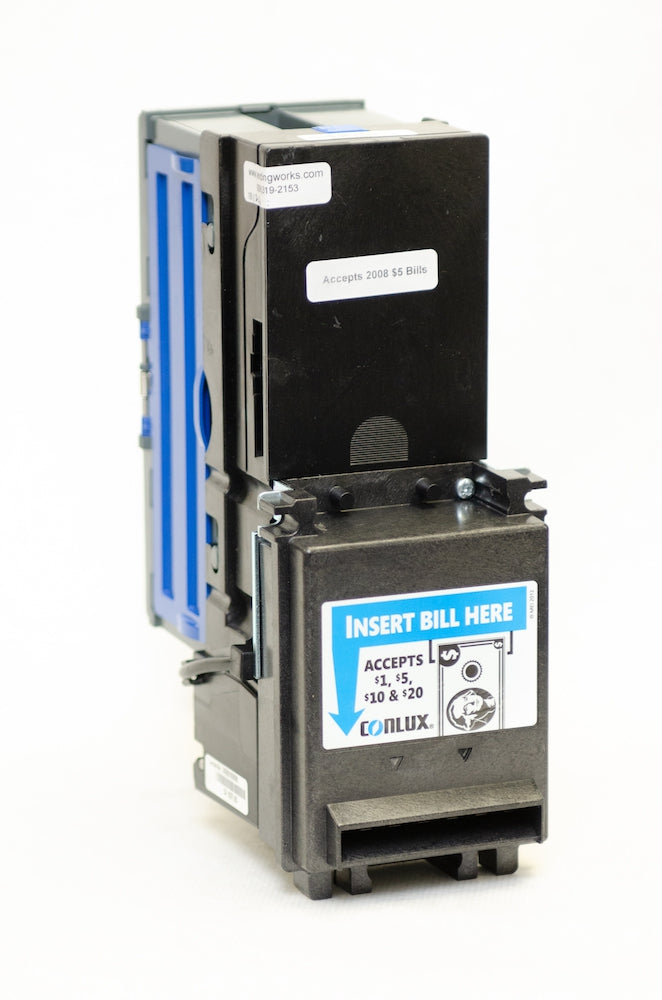

Conlux MEI CV1022 Bill Validator (CV1000 Series)
The Conlux MEI CV1022 is a reliable, value-oriented bill validator from the CV1000 series (Conlux is MEI’s value brand, acquired by MEI in 2003). It is designed primarily for full-line and soda/vending applications and provides solid performance for operators seeking dependable currency acceptance without premium pricing.
Key Features
- Accepts U.S. $1, $2, $5, $10, and $20 bills
- 4-way bill acceptance (face up or down, either direction)
- High acceptance rate of 95% or greater
- Optical sensing technology with dual pellet sensing for improved security and reliability
- Compact-style bezel with additional setback (soda-face style)
- Upstacker configuration
- Cash box options: 300-note or 500-note magazine
- MDB (Multi-Drop Bus) interface only
- Simple field programming: Enable/disable denominations via a blue button on the rear or with a configuration coupon
- Status LED on the rear for easy diagnostics and troubleshooting
- Supports various coupons (Conlux Free Vend, Value Vend, Pepsi, Aramark, etc.)
- Brighter bezel LEDs for better visibility and merchandising
Technical Specifications
- Voltage / Power: 22–45 VDC (24V MDB)
- Power Consumption: Standby ~5W; Acceptance ~15W; Full stack max ~20W
- Bill Insertion: Lengthwise, four-way
- Escrow: Supported
- Operating Temperature: –15°C to 60°C
- Storage Temperature: –40°C to 70°C
- Approximate Shipping Weight: 5 lbs (2.3 kg)
- Typical Part Number Example: CV1022-U5M (or similar variants)
Common Applications
Widely used in full-line vending machines, soda machines, and other MDB-equipped equipment. Units are frequently available refurbished (with new belts, updates, and testing) and are a popular, cost-effective choice for operators replacing older Conlux or similar validators.
The CV1022 offers straightforward operation, good reliability, and easy configuration, making it a practical option for value-conscious vending operators.
Warranty
1-year warranty. Does not cover vandalism or power surges.
Click here to download the programming coupon for this validator
