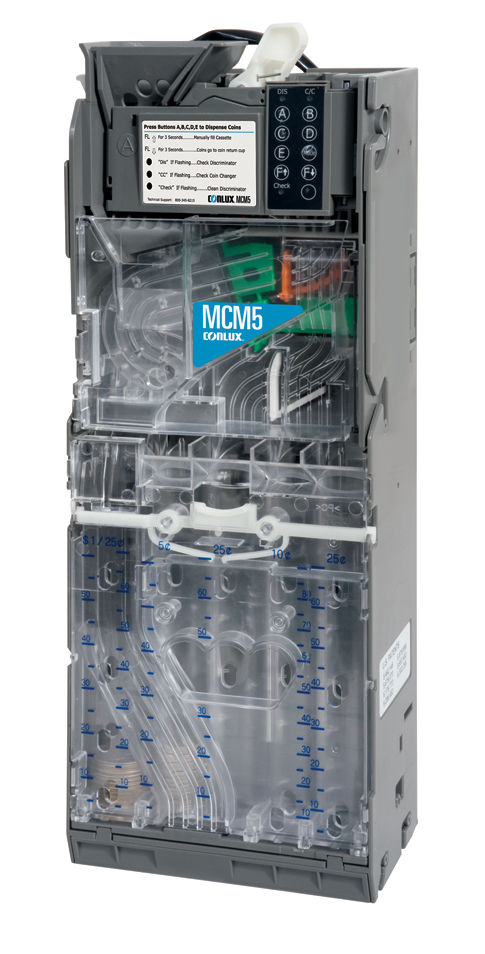

Conlux MCM5 Coin Changer
The Conlux MCM5 is the next-generation 5-tube MDB changer after the CCM5 / CCM5G. Same MDB footprint and auto-sensing cassette idea, with larger tubes, extra float options, and a third diagnostic LED.
What it does
- Accepts U.S. nickels, dimes, quarters, and $1 coins
- Switch-selectable U.S. only, Canadian only, or both (Canadian $1 and $2)
- Five-tube removable cassette — snap it in and the changer reads the layout; no programming
- Tubes hold two full rolls and have fill lines on the cassette
- Cassette opens from the rear for faster loading
- Simultaneous payout of up to three coins
- Last-coin payout so tubes don’t leave stranded inventory
- Smart payout retries if a coin hangs
- Anti-salting drain path
- Three LED diagnostic lights
- Memory backup through a power loss
Float / inventory
- Two factory float presets: $34 or $52
- Or set float up/down from the discriminator buttons
- Meant to cut exact-change lockouts and extra service stops
Electrical and interface
- Voltage: 34V DC
- Interface: MDB, 6-pin
- Idle about 0.07 A (about 30% less than CCM5G)
- Motor about 0.66 A; peak about 0.92 A
- Size: 14.83" H × 5.43" W × 3.23" D (same channel as CCM5G)
- Weight: about 3.5 lb
Common cassettes (specify on the listing)
| Cassette | Tubes A–E |
|---|---|
| MCM5-1 | 25¢ / 5¢ / 25¢ / 10¢ / 25¢ |
| MCM5-4 |
$1 / 5¢ / 25¢ / 10¢ / 25¢ |
How it compares
- CCM5G: same 5-tube MDB family; smaller tubes, fewer float choices
- MCM5: larger tubes, $34/$52 or button float, rear-load cassette, third LED, lower idle current
- MEI CF7512: also 5-tube MDB, but uses an LCD and must be programmed when the cassette changes
- Coinco 9302-GX / TRC-6512: 3-tube MDB, less change on hand
Warranty
1-year warranty. Does not cover vandalism or power surges.
