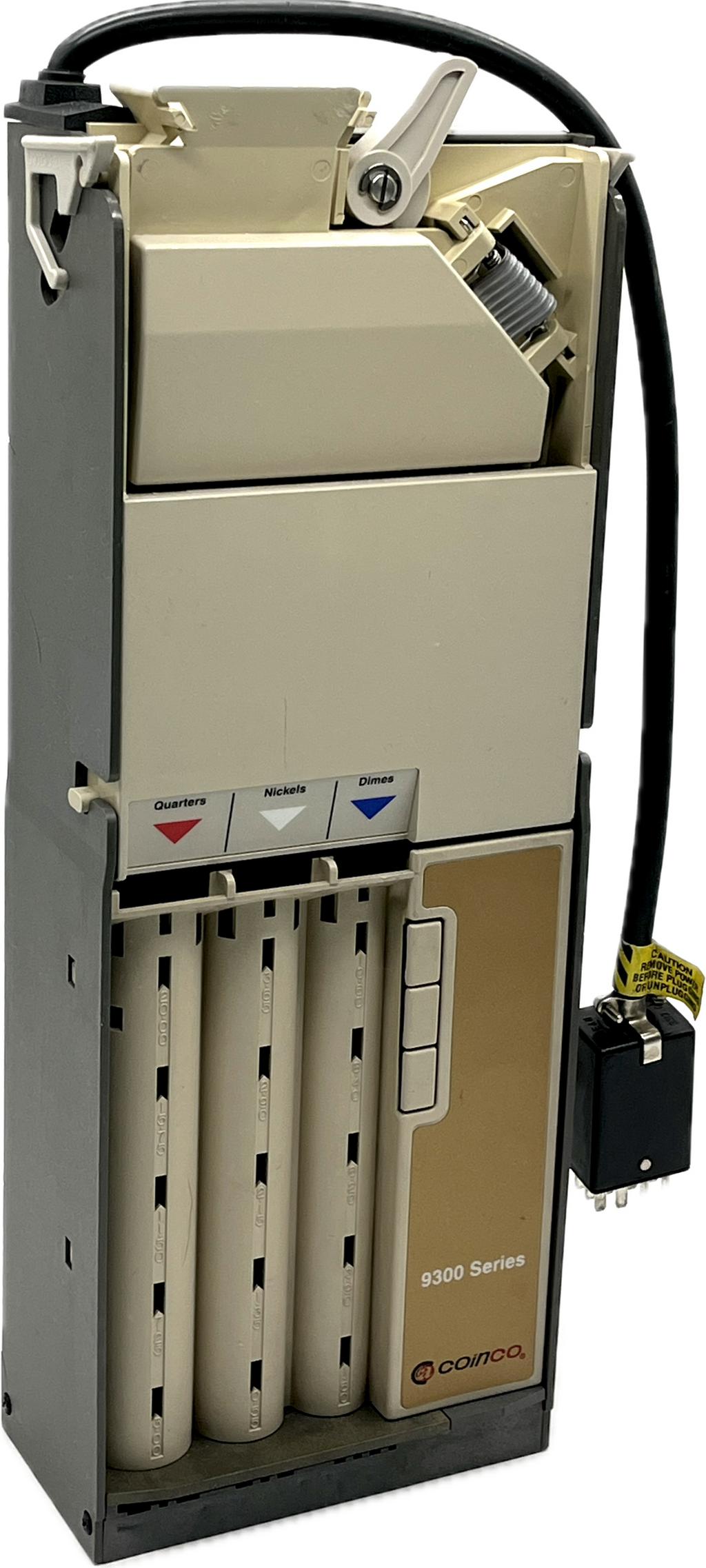

Coinco 9300L Logic Coin Changer (115V / 12-Pin)
The Coinco 9300L is a reliable electronic logic (micro-mech) coin changer designed for use in electronically controlled vending machines. It accepts U.S. nickels, dimes, quarters, and dollar coins, and pays out nickels, dimes, and quarters from self-loading, high-capacity change tubes.
Key Features
- Accepts U.S. nickels, dimes, quarters, and dollar coins (dollar acceptance is switch-selectable)
- Pays out nickels, dimes, and quarters from three self-loading high-capacity tubes
- Change capacity of $40.55
- Switch-selectable high or low quarter tube level
- Heavy-duty DC payout solenoids for fast, accurate payout
- Electronic logic system for reliable performance
- Lightweight, rugged plastic construction
- Designed for electronically controlled machines only
Specifications
- Voltage: 115V / 117V (full-wave rectified; 95–130V range)
- Interface / Plug: 12-pin
- Tubes: 3-tube payout (nickel, dime, quarter)
- Coins Accepted: U.S. nickels, dimes, quarters, and $1 coins
- Change Capacity: $40.55
- Brand: Coinco (Coin Acceptors)
Compatibility Notes
The 9300L is a common replacement for MEI/Mars TRC-6000 and MC5000 changers with matching voltage and 12-pin connectors. It is widely used in older electronic soda, snack, and multi-price machines that require a 12-pin logic changer. Confirm voltage, plug type, and machine compatibility before installing. Do not use a 24V unit in a 115V machine (or vice versa).
A proven, field-serviceable logic coin changer for operators maintaining classic electronic vending equipment.
