Description

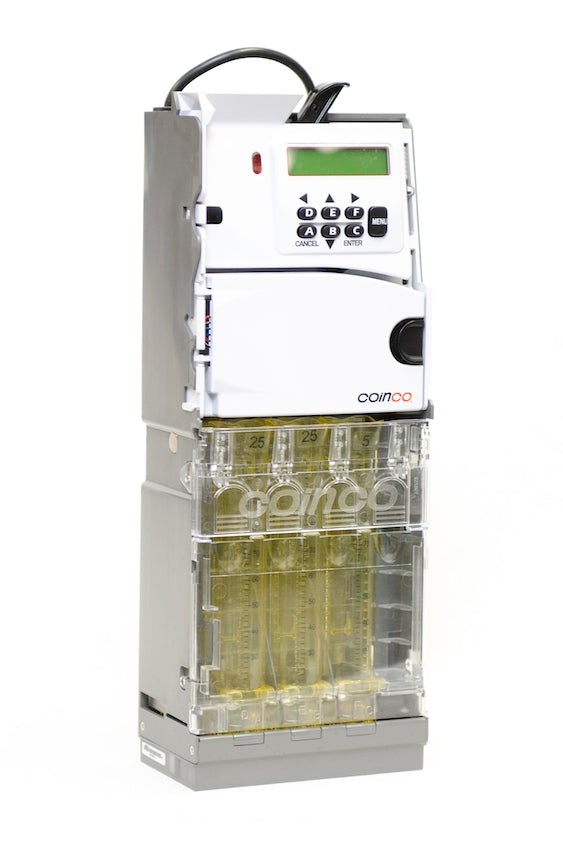

Coinco Guardian GLX6 6-Tube MDB Coin Changer
The Coinco Guardian GLX (often listed as GLX6 / GLXUS) is a 6-tube MDB coin changer for vending machines. It is the current generation of Coinco’s Guardian line and is commonly used as a replacement for older Guardian 6000 / 6000XL units.
It validates coins electronically, routes accepted coins into six self-replenishing payout tubes or the cash box, and pays change through a single-motor ratchet drive. A lift-out illuminated cassette makes loading faster, and snap-in tubes can be swapped in the field without tools.
Key features
- Six self-replenishing coin tubes for high change capacity
- Lift-out cassette that stands upright when removed
- Cassette illumination for faster, more accurate loading
- Snap-out / snap-in tubes — no tools required
- Single-motor ratchet payout drive
- LCD display with keypad for menus, diagnostics, and setup
- Built-in self-diagnostics and error codes
- Field-tunable tokens and slug rejection
- Improved pulse-echo tube level sensing
- Optional Par / Float mode to hold a set tube inventory
- Interchangeable tube configurations for different payout mixes
Typical US cassette options Common factory setups include:
- BB: 25¢ / 10¢ / 5¢ / 5¢ / 25¢ / 25¢
- BD: $1 / $1 / 25¢ / 5¢ / 10¢ / 25¢
- BE: 25¢ / 25¢ / 5¢ / 5¢ / 25¢ / 25¢
- EF: 25¢ / 25¢ / 5¢ / 25¢ / 25¢ / 25¢
Dollar and dime tubes are available depending on cassette. Canadian configurations also exist.
Compatibility Works in multi-price vending machines that use the MDB (Multi-Drop Bus) protocol and the standard 6-pin Mini-Fit MDB harness. Suited to machines that take larger bills ($5+) and need more change on hand.
Specifications
- Interface: MDB
- Power: 20–42 V DC
Standby ~0.15 A · operating ~0.6 A · max ~1.8 A - Operating temp: 0°F to 150°F (−18°C to 65°C)
- Storage temp: −22°F to 160°F (−30°C to 72°C)
- Humidity: 20–95% non-condensing
- Mounting: vertical ±3°
- Validates up to 32 coin / token types
- Weight: typically about 4–5 lb
Best for Route operators who want higher tube capacity, quicker coin loading, easier field service, and straightforward diagnostics in MDB vending equipment.
Warranty
1-year warranty. Does not cover vandalism or power surges.
