Description

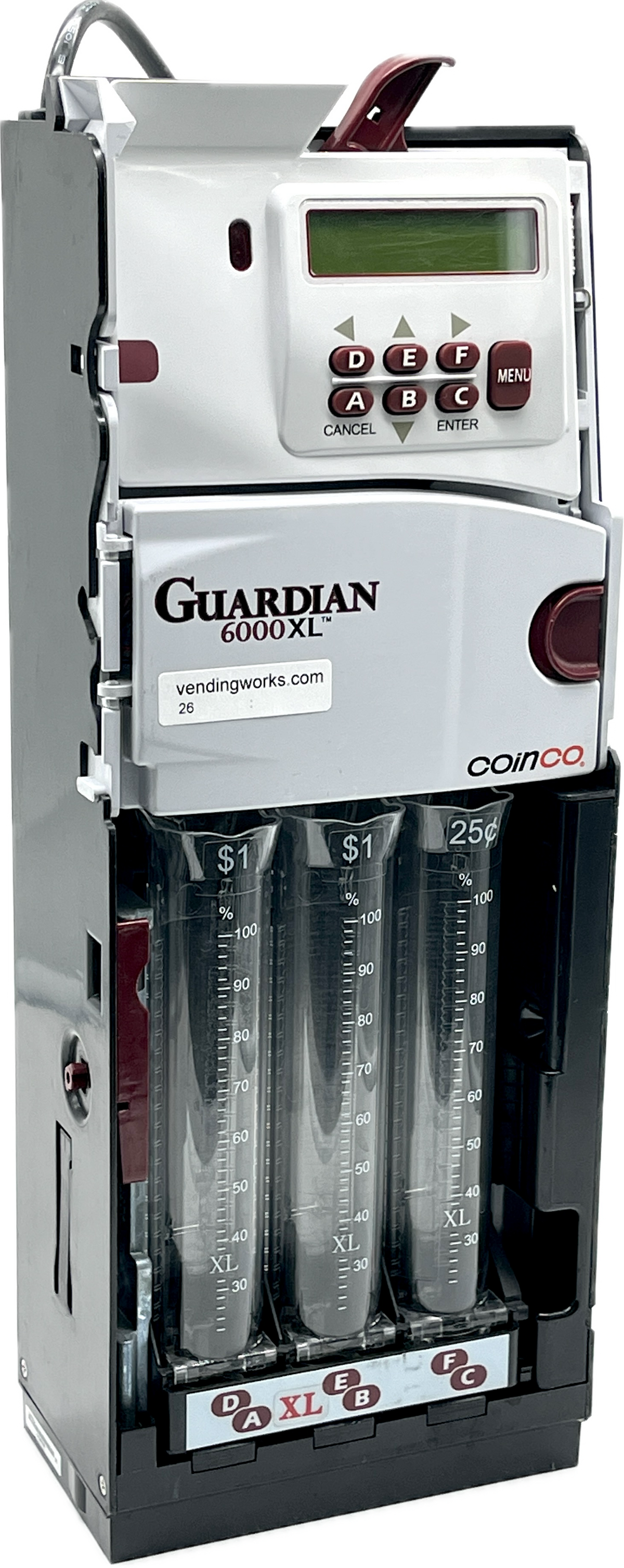

Coinco Guardian G6XUS 6000-XL 6-Tube MDB Coin Changer
The Coinco Guardian G6XUS 6000-XL is a six-tube MDB coin changer for multi-price vending machines. G6XUS is the U.S. MDB model in the Guardian 6000XL line. The XL update improved the payout assembly over the original Guardian 6000.
It electronically validates coins, routes accepted coins into six self-replenishing tubes or the cash box, and pays change with a heavy-duty single-motor ratchet drive. A swing-out illuminated cassette speeds loading, and individual tubes snap in and out without tools.
Key features
- Six self-replenishing payout tubes with cash accountability
- Swing-out illuminated cassette for faster loading
- Snap-in / snap-out coin tubes — no tools required
- Single-motor ratchet payout drive (XL hardware)
- LCD display with easy-touch keypad
- Built-in self-diagnostics
- Field-tunable tokens and slug rejection
- Interchangeable tubes for payout reconfiguration
- Par / Float mode to hold a set tube inventory
- Compatible with Coinco FP-5 field programmer
Typical U.S. cassette configurations Common G6XUS setups include:
- BB: 25¢ / 10¢ / 5¢ / 5¢ / 25¢ / 25¢
- BE: 25¢ / 25¢ / 5¢ / 5¢ / 25¢ / 25¢
- BD: $1 / $1 / 25¢ / 5¢ / 10¢ / 25¢
Other mixes (more quarters, dollars, dimes) are available by swapping tubes.
Compatibility Works in vending machines that use MDB (Multi-Drop Bus) and the standard 6-pin Mini-Fit MDB harness. Built for machines that dispense a lot of change, including those that accept $5 and larger bills. The 6000-XL is the upgraded successor to the original Guardian 6000 and is commonly replaced today by the newer Guardian GLX.
Specifications
- Model family: Guardian 6000XL
- Model code: G6XUS (U.S., MDB)
- Interface: MDB
- Power: 20–42 V DC (typically 24/34 V)
Standby ~0.15 A · operating ~0.6 A · max ~1.8 A - Operating temp: 0°F to 150°F (−18°C to 65°C)
- Storage temp: −22°F to 160°F (−30°C to 72°C)
- Humidity: 20–95% non-condensing
- Mounting: vertical ±3°
- Shipping weight: about 5 lb
Best for Operators who need high tube capacity, easy cassette loading, and field-serviceable tubes in MDB snack, drink, and food venders.
Warranty
1-year warranty. Does not cover vandalism or power surges.
