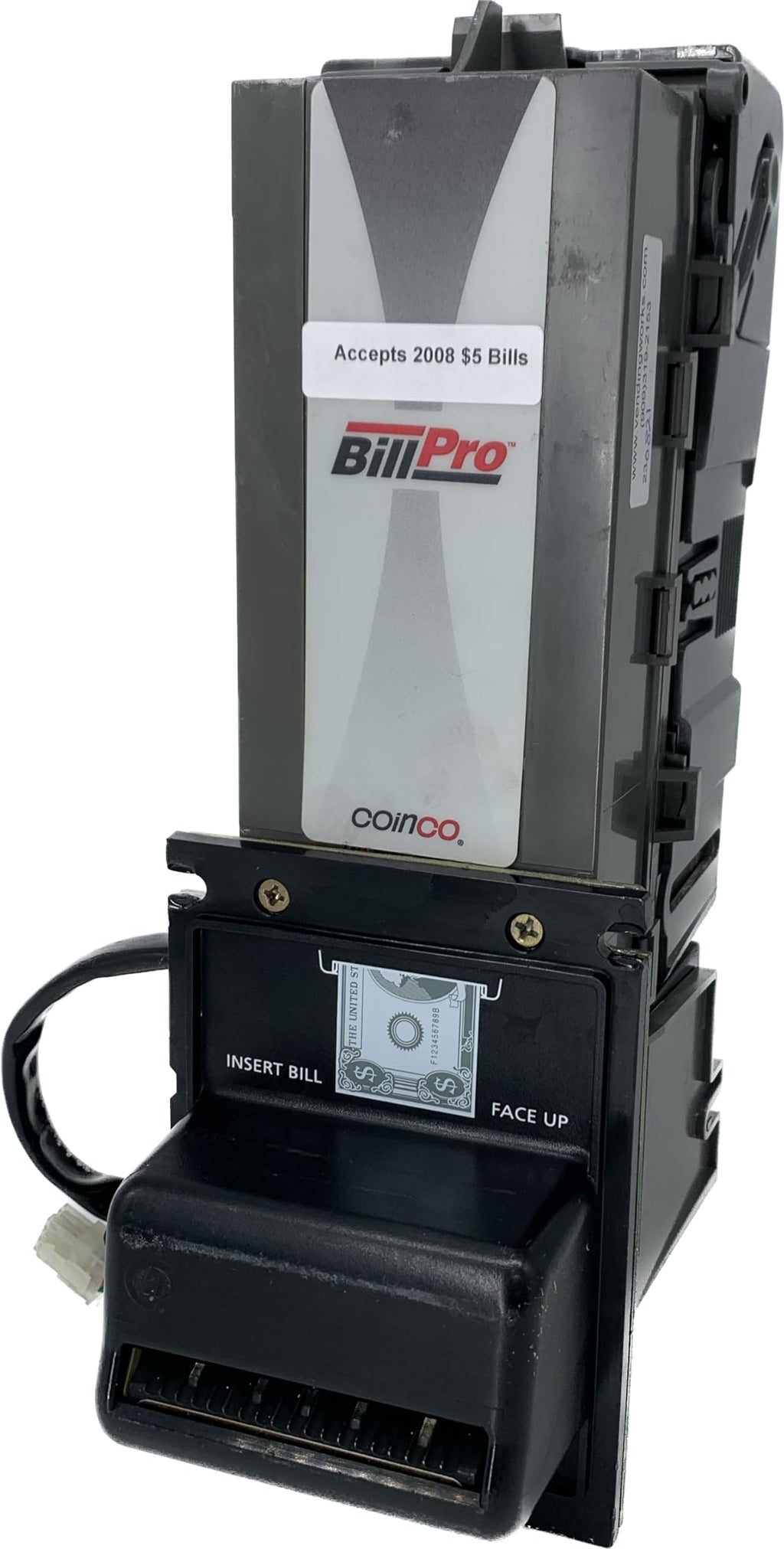

Coinco Bill Pro BP4BX Bill Validator (Bottler / Soft Drink Face)
Compact multi-denomination Coinco Bill Pro validator designed for MDB cold-drink and soda vending machines. The BP4BX accepts $1, $5, $10, and $20 bills and features an expandable FlexStack bill box for higher capacity with fewer collections.
Key features
- Accepts U.S. $1, $5, $10, and $20 bills (supports newer series notes on properly configured units)
- Multi-Drop Bus (MDB) interface only — 24/34V DC
- Bottler / soft-drink style faceplate and bezel
- Innovative FlexStack expandable bill box (typically starts around 300 notes and expands to 500+)
- High-visibility green illuminated inlet / landing lights
- Dual optical and magnetic validation for high acceptance rates and counterfeit resistance
- Bill path clearing software and anti-jam features for improved reliability
- Modular, snap-in design for easier cleaning and field service
- Flash-programmable for future updates
- Improved anti-cheat and vandal resistance
Typical specifications
- Power: 22–45 VDC (MDB)
- Bill box capacity: Expandable FlexStack (up to ~500–650 notes depending on configuration)
- Primary use: MDB cold-drink / soda vending machines
Applications
A practical multi-denomination solution for machines that need more than $1 acceptance. The Bill Pro series sits between the earlier Mag/MagPro models and later Vantage units, offering a more compact design without a separate control box. The BP4BX is the bottler-face counterpart to the snack-face BP4SX.
Confirm exact harness, stacker configuration, and denomination programming before ordering. Units are rebuilt with new belts and basic testing.
