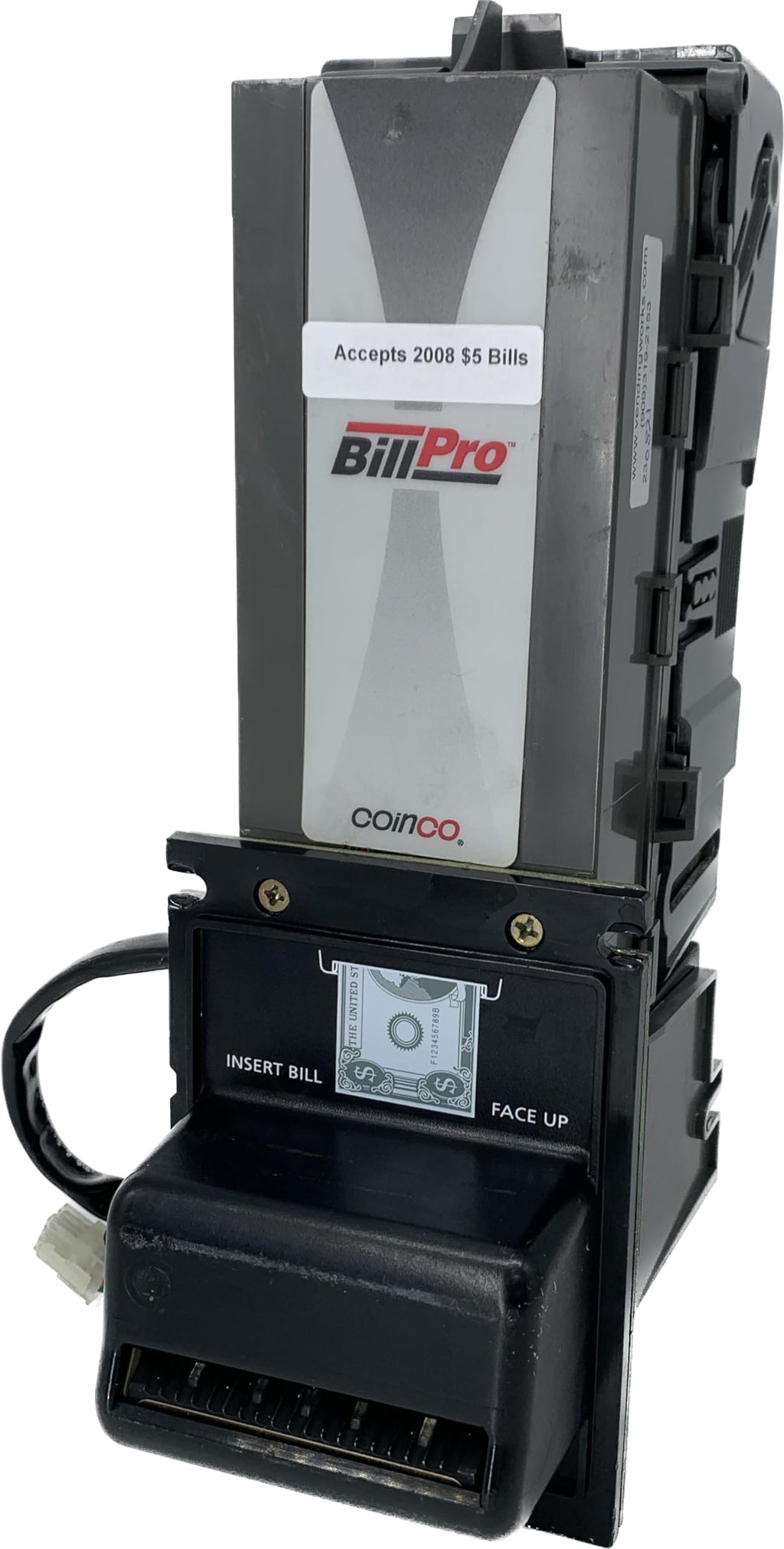

Coinco BillPro BP2BX Bill Validator / Bill Acceptor
The Coinco BillPro BP2BX is a reliable MDB-only bill acceptor from Coinco’s BillPro series, positioned between the earlier MagPro and later Vantage models. It is designed primarily for cold drink (soda/bottler) vending machines and other MDB-equipped equipment that primarily handle lower-priced items.
Key Features
- Accepts U.S. $1 and $5 bills (programmable; supports older and newer designs including 2008 $5 bills)
- Bottler (compact soda-style) bezel/mask
- MDB (Multi-Drop Bus) interface only
- Innovative FlexStack™ expandable bill box (starts around 300 notes and expands up to 500–650 notes)
- Illuminated inlet with high-visibility green LEDs to attract attention and increase sales
- Optical + magnetic validation for high acceptance rates and strong counterfeit/fraud resistance
- Anti-jam software and bill-path clearing routines for improved transport reliability
- Scalloped bill path and center drive belt for better handling of wet or worn bills
- Modular design with easy-access bill path and snap-in modules for quick field service
- Flash-programmable memory for future currency updates and features
- Improved anti-cheat/anti-pullback protection and vandal-resistant construction
- Returned-bill “hold” feature for customer retrieval
- Coupon acceptance capability (including MAG Free-Vend options)
Technical Specifications
- Voltage / Interface: 22–45 VDC (34V MDB nominal)
- Power Consumption: Approx. 0.2 A standby / up to 2.5 A operating
- Bill Box: FlexStack expandable (typically 300–650 notes)
- Operating Temperature: –18°C to 65°C (0°F to 150°F)
- Storage Temperature: –30°C to 74°C
- Relative Humidity: 5%–95% non-condensing
- Shipping Weight: Approximately 4–5 lbs
Applications & Compatibility
Ideal for MDB cold-drink, soda, and similar vending machines from manufacturers such as Dixie Narco, Vendo, Royal, Crane National, USI, and others. The compact design and built-in MDB harness make installation straightforward. Best suited for machines selling items at $5 or less (operators often pair it with a higher-capacity coin changer when enabling $5 acceptance).
Units are refurbished (cleaned, new belts, updated firmware, and tested). The BP2BX offers a solid balance of reliability, security, and capacity in a compact MDB package, making it a popular choice for maintaining or upgrading mid-range vending equipment.
Warranty
1-year warranty. Does not cover vandalism or power surges.
