Description

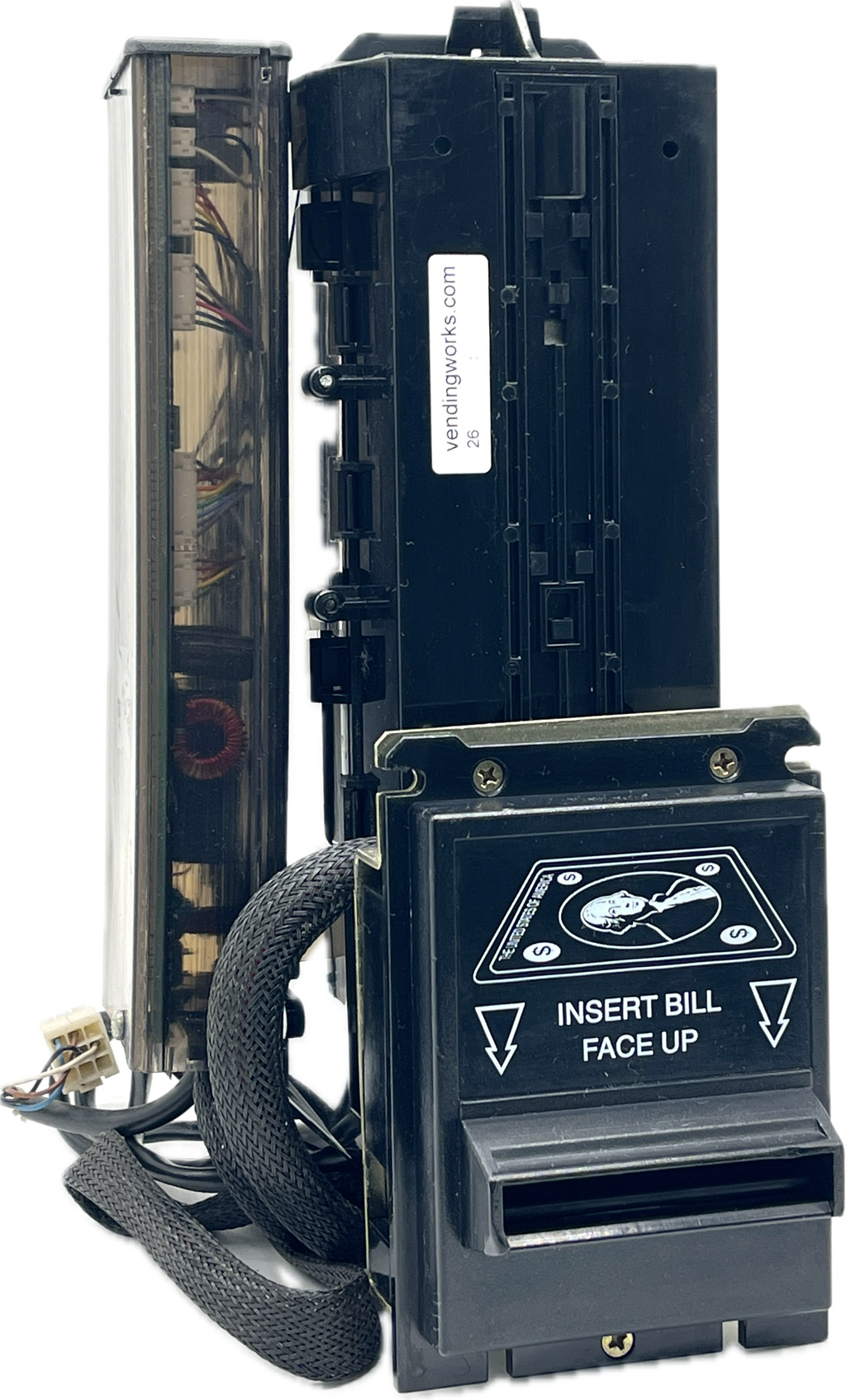

Coinco BA32SA Bill Validator / Bill Acceptor
The Coinco BA32SA is a proven, durable bill acceptor from Coinco’s BA30 series, widely used in the vending industry from the early 1990s through the 2000s. It remains a reliable workhorse still found in many older snack, food, coffee, and select drink machines. The BA series introduced MDB (Multi-Drop Bus) technology, which Coinco pioneered.
Key Features
- Accepts U.S. $1 bills only (standard configuration; some units or related models can be set for limited higher denominations depending on firmware/switches)
- 300-note stacker capacity
- Snack-style bezel (Coinco snack mask)

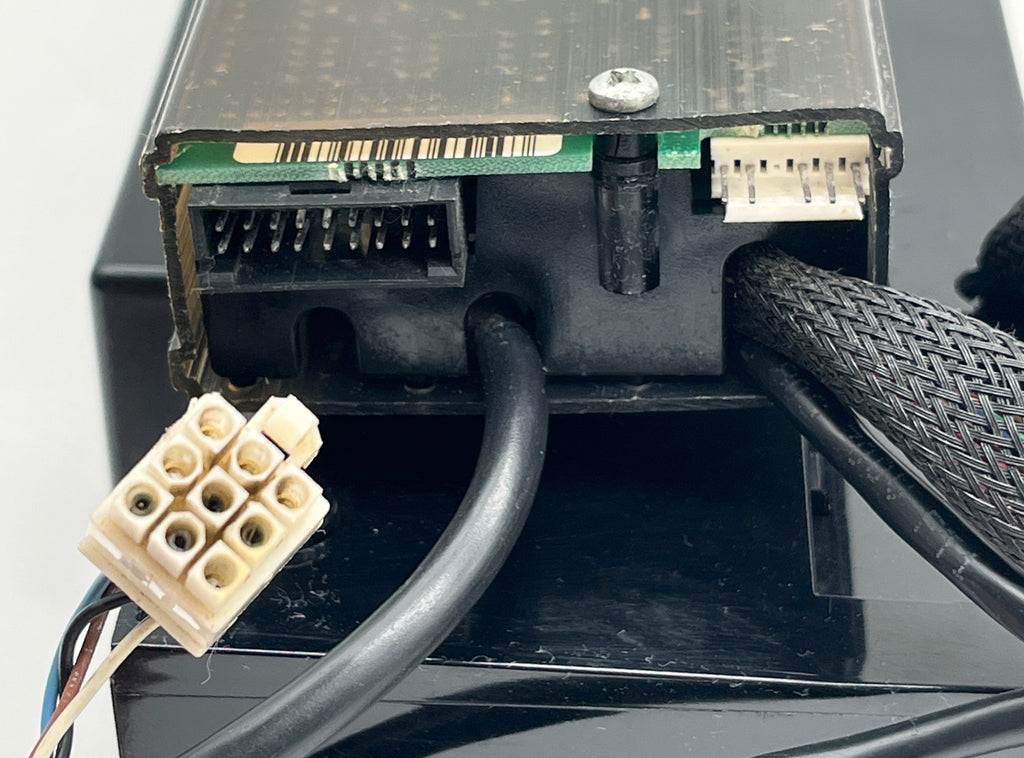

- Dual interface capability: 24V MDB + 24V Pulse/Serial (compatible with Mars/MEI-style 9-pin power + 18-pin data connectors)
- Extended-length harness for flexible mounting (control board can be detached and relocated in tight spaces)
- Modular design with diagnostic LED indicators
- Switch-selectable options for acceptance direction and security level
Technical Specifications
- Voltage: 24 VAC / 24–34 VDC (MDB range typically 22–45 VDC)
- Power: Approximately 0.2 A standby / up to 2.5 A operating
- Interfaces: MDB, Pulse, and Serial
- Bezel: Coinco snack style
- Bill Box: 300-note
- Operating Temperature: 0°C to 65°C (32°F to 150°F)
- Shipping Weight: Approximately 4–5 lbs
Compatibility & Applications
Primarily designed for snack, coffee, and food vending machines (electronic or MDB interfaces). The dual connectors allow it to replace many 24V MEI/Mars Series 2000 validators with the appropriate harness. Commonly found in machines such as certain AP Snackshop, USI, Seaga, and other models with limited mounting space. The extended harness is particularly useful in tight installations.
Notes
Units are refurbished (cleaned, new belts, calibrated, and tested). The BA32SA is valued for its versatility and reliability in legacy equipment, though many operators eventually upgrade to newer MEI/CPI or Coinco Mag Pro models for broader denomination acceptance and improved features.
A solid, cost-effective choice for maintaining or repairing older 24V vending machines that require a snack-style bill acceptor.
Warranty
1-year warranty. Does not cover vandalism or power surges.
